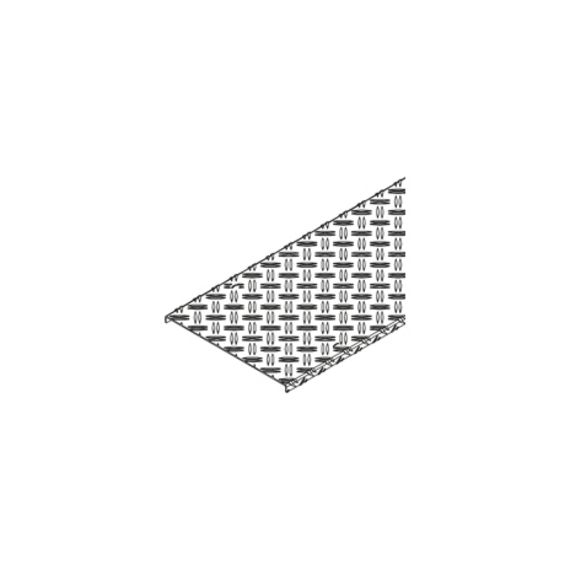

BKDR-WZB AL floor duct cover made of aluminium chequered plate

Downloads

The cover consists of a 2.5 mm thick aluminum sheet with 1.5 mm anti-slip embossing and slip resistance R10 according to DIN 51130. In compliance with the installation specifications and a maximum compartment size of 200 mm, the cover guarantees a tested load capacity of at least 300 kg according to EN 50085-2-2.

Aluminium

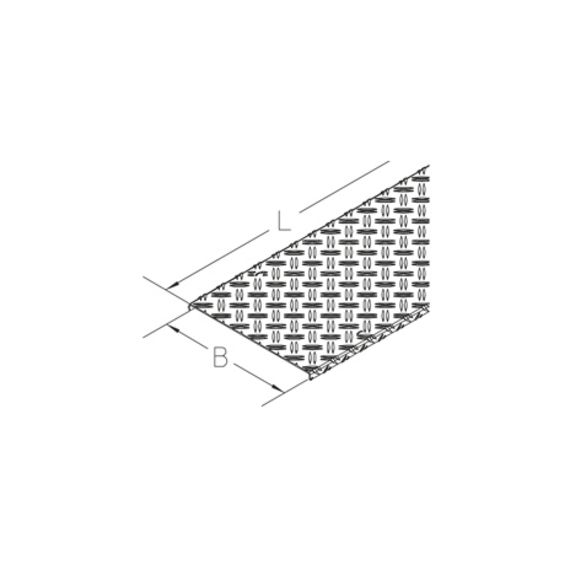

	width	length	t material thickness	P_maxMaximum load	slip resistance class slip resistance according to DIN 51130	weight
BKDR-WZB 10AL	100 mm	3000 mm	2.50 mm	3 kN	R10	2.99 kg
BKDR-WZB 15AL	150 mm	3000 mm	2.50 mm	3 kN	R10	4.13 kg
BKDR-WZB 20AL	200 mm	3000 mm	2.50 mm	3 kN	R10	5.26 kg
BKDR-WZB 30AL	300 mm	3000 mm	2.50 mm	3 kN	R10	7.53 kg
BKDR-WZB 40AL	400 mm	3000 mm	2.50 mm	3 kN	R10	9.79 kg
BKDR-WZB 50AL	500 mm	3000 mm	2.50 mm	3 kN	R10	12.06 kg
BKDR-WZB 60AL	600 mm	3000 mm	2.50 mm	3 kN	R10	14.33 kg
BKDR-WZB 1.5-10AL	100 mm	1500 mm	2.50 mm	3 kN	R10	1.51 kg
BKDR-WZB 1.5-15AL	150 mm	1500 mm	2.50 mm	3 kN	R10	2.06 kg
BKDR-WZB 1.5-20AL	200 mm	1500 mm	2.50 mm	3 kN	R10	2.61 kg
BKDR-WZB 1.5-30AL	300 mm	1500 mm	2.50 mm	3 kN	R10	3.72 kg
BKDR-WZB 1.5-40AL	400 mm	1500 mm	2.50 mm	3 kN	R10	4.82 kg
BKDR-WZB 1.5-50AL	500 mm	1500 mm	2.50 mm	3 kN	R10	5.93 kg
BKDR-WZB 1.5-60AL	600 mm	1500 mm	2.50 mm	3 kN	R10	7.03 kg
BKDR-WZB 1-10AL	100 mm	1000 mm	2.50 mm	3 kN	R10	1.03 kg
BKDR-WZB 1-15AL	150 mm	1000 mm	2.50 mm	3 kN	R10	1.50 kg
BKDR-WZB 1-20AL	200 mm	1000 mm	2.50 mm	3 kN	R10	1.77 kg
BKDR-WZB 1-30AL	300 mm	1000 mm	2.50 mm	3 kN	R10	2.50 kg
BKDR-WZB 1-40AL	400 mm	1000 mm	2.50 mm	3 kN	R10	3.24 kg
BKDR-WZB 1-50AL	500 mm	1000 mm	2.50 mm	3 kN	R10	3.98 kg
BKDR-WZB 1-60AL	600 mm	1000 mm	2.50 mm	3 kN	R10	4.71 kg
