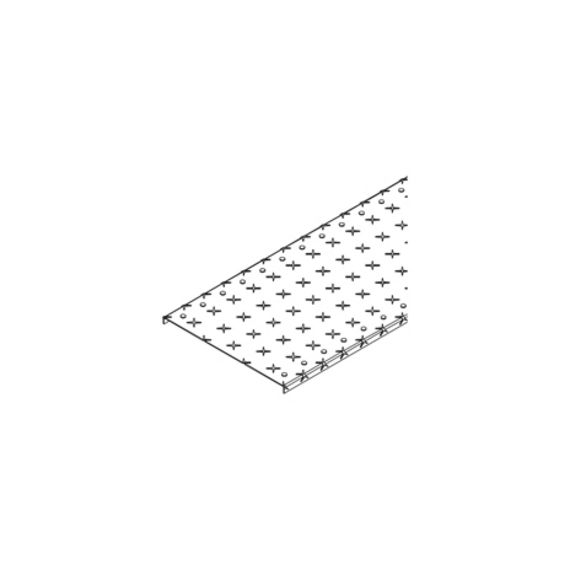

BKD-RHP floor duct cover with non-slip embossing

Downloads

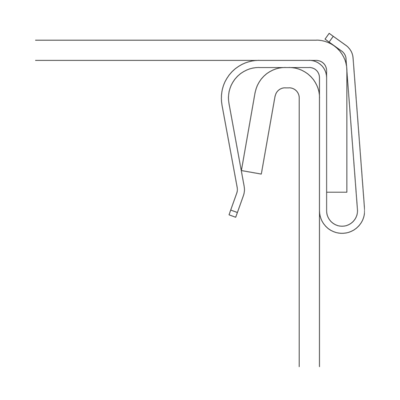

The floor channel lid hinge BKD-S connects the lid BKD-RHP with the floor channel BK. In this way, the lid can be opened. The hinge fits the pre-stamped knock-out slugs in the BK and BKD-RHP. The slugs must be knocked out and the hinge screwed in place using the KLR clamp fastening set. Three hinges are recommended for the BKD-RHP cover, two hinges for the BKD-RHP short pieces (1.5m and 1m). KLR must be ordered separately.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

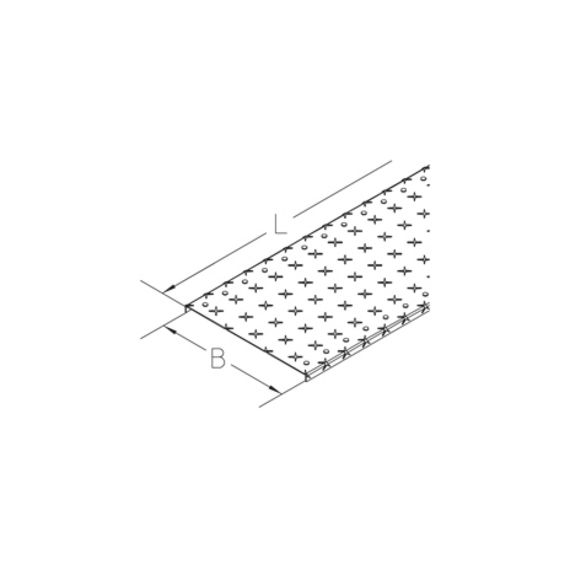

	width	length	t material thickness	P_maxMaximum load	slip resistance class slip resistance according to DIN 51130	weight
BKD-RHP 10S	100 mm	3000 mm	2.00 mm	5 kN	R12	6.03 kg
BKD-RHP 15S	150 mm	3000 mm	2.00 mm	5 kN	R12	8.38 kg
BKD-RHP 20S	200 mm	3000 mm	2.00 mm	5 kN	R12	10.74 kg
BKD-RHP 30S	300 mm	3000 mm	2.00 mm	5 kN	R12	15.45 kg
BKD-RHP 40S	400 mm	3000 mm	2.00 mm	5 kN	R12	20.16 kg
BKD-RHP 50S	500 mm	3000 mm	2.00 mm	5 kN	R12	24.87 kg
BKD-RHP 60S	600 mm	3000 mm	2.00 mm	5 kN	R12	29.58 kg
BKD-RHP 1.5-10S	100 mm	1500 mm	2.00 mm	5 kN	R12	3.01 kg
BKD-RHP 1.5-15S	150 mm	1500 mm	2.00 mm	5 kN	R12	4.19 kg
BKD-RHP 1.5-20S	200 mm	1500 mm	2.00 mm	5 kN	R12	5.37 kg
BKD-RHP 1.5-30S	300 mm	1500 mm	2.00 mm	5 kN	R12	7.72 kg
BKD-RHP 1.5-40S	400 mm	1500 mm	2.00 mm	5 kN	R12	10.08 kg
BKD-RHP 1.5-50S	500 mm	1500 mm	2.00 mm	5 kN	R12	12.43 kg
BKD-RHP 1.5-60S	600 mm	1500 mm	2.00 mm	5 kN	R12	14.79 kg
BKD-RHP 1-10S	100 mm	1000 mm	2.00 mm	5 kN	R12	2.01 kg
BKD-RHP 1-15S	150 mm	1000 mm	2.00 mm	5 kN	R12	2.79 kg
BKD-RHP 1-20S	200 mm	1000 mm	2.00 mm	5 kN	R12	3.58 kg
BKD-RHP 1-30S	300 mm	1000 mm	2.00 mm	5 kN	R12	5.15 kg
BKD-RHP 1-40S	400 mm	1000 mm	2.00 mm	5 kN	R12	6.72 kg
BKD-RHP 1-50S	500 mm	1000 mm	2.00 mm	5 kN	R12	8.29 kg
BKD-RHP 1-60S	600 mm	1000 mm	2.00 mm	5 kN	R12	9.86 kg
