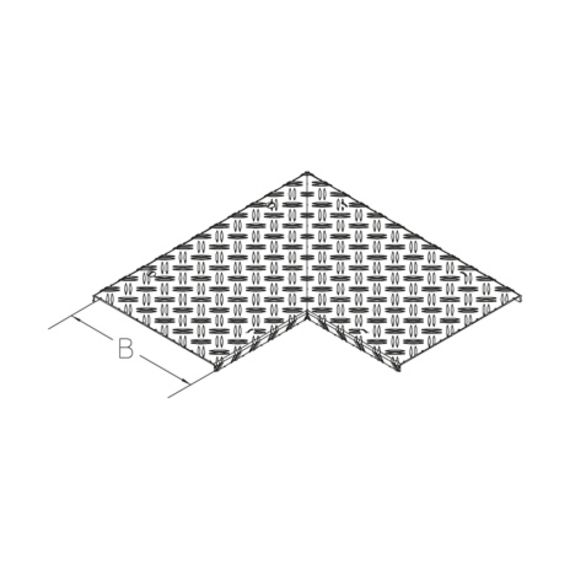

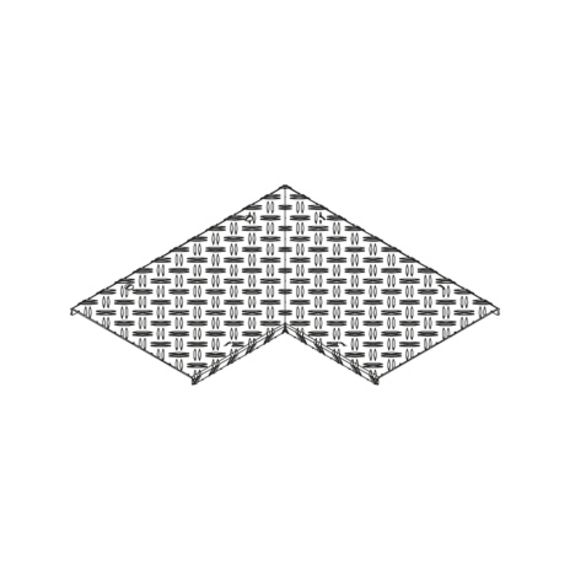

The cover consists of a 2.5 mm thick aluminum sheet with 1.5 mm anti-slip embossing and slip resistance R10 according to DIN 51130. In compliance with the installation specifications and a maximum compartment size of 200 mm, the cover guarantees a tested load capacity of at least 300 kg according to EN 50085-2-2.
Aluminium
| width | t material thickness | PmaxMaximum load | slip resistance class slip resistance according to DIN 51130 | weight | ||
|---|---|---|---|---|---|---|
| BKBGDR-WZB 10AL | 100 mm | 2.50 mm | 3 kN | R10 | 0.66 kg | |
| BKBGDR-WZB 15AL | 150 mm | 2.50 mm | 3 kN | R10 | 0.93 kg | |
| BKBGDR-WZB 20AL | 200 mm | 2.50 mm | 3 kN | R10 | 1.25 kg | |
| BKBGDR-WZB 30AL | 300 mm | 2.50 mm | 3 kN | R10 | 1.99 kg | |
| BKBGDR-WZB 40AL | 400 mm | 2.50 mm | 3 kN | R10 | 2.87 kg | |
| BKBGDR-WZB 50AL | 500 mm | 2.50 mm | 3 kN | R10 | 3.90 kg | |
| BKBGDR-WZB 60AL | 600 mm | 2.50 mm | 3 kN | R10 | 5.08 kg |
