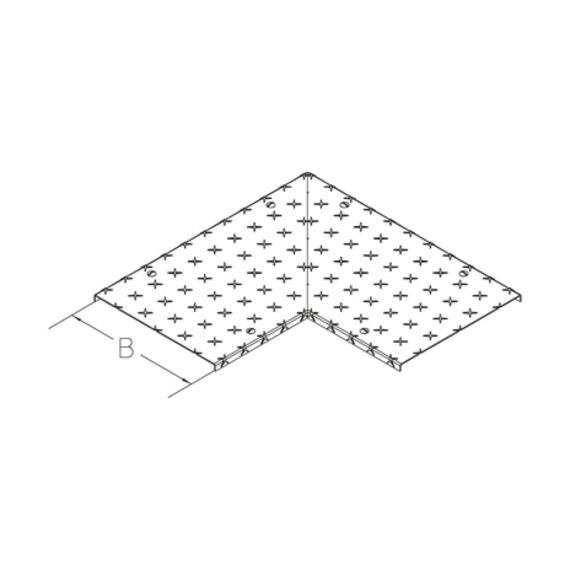

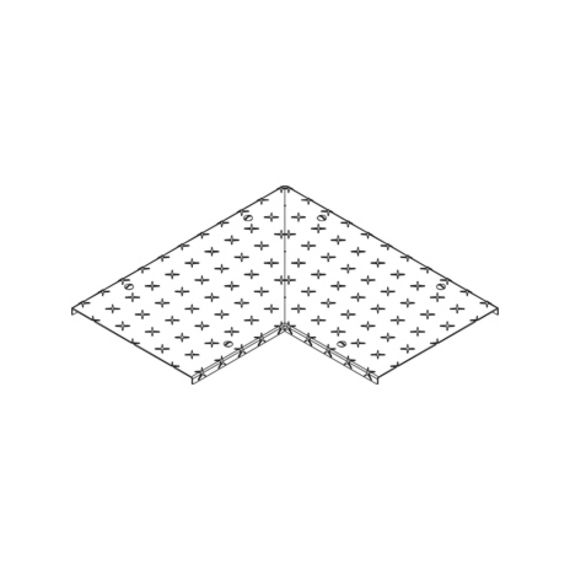

The cover consists of a 2 mm thick galvanized sheet steel with 1 mm non-slip embossing and slip resistance R12 according to DIN 51130. In compliance with the installation specifications and a maximum compartment size of 200 mm, the cover guarantees a tested load capacity of at least 500 kg according to EN 50085-2-2.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)
| width | t material thickness | PmaxMaximum load | slip resistance class slip resistance according to DIN 51130 | weight | ||
|---|---|---|---|---|---|---|
| BKBGDR-RHP 10S | 100 mm | 2.00 mm | 5 kN | R12 | 1.27 kg | |
| BKBGDR-RHP 15S | 150 mm | 2.00 mm | 5 kN | R12 | 1.86 kg | |
| BKBGDR-RHP 20S | 200 mm | 2.00 mm | 5 kN | R12 | 2.53 kg | |
| BKBGDR-RHP 30S | 300 mm | 2.00 mm | 5 kN | R12 | 4.10 kg | |
| BKBGDR-RHP 40S | 400 mm | 2.00 mm | 5 kN | R12 | 5.99 kg | |
| BKBGDR-RHP 50S | 500 mm | 2.00 mm | 5 kN | R12 | 8.19 kg | |
| BKBGDR-RHP 60S | 600 mm | 2.00 mm | 5 kN | R12 | 10.7 kg |
