In compliance with the installation specifications and a maximum compartment size of 200 mm, the cover guarantees a tested load capacity of at least 500 kg according to EN 50085-2-2.
Continously hot galvanized (Sendzimir process) (DIN EN 10346)

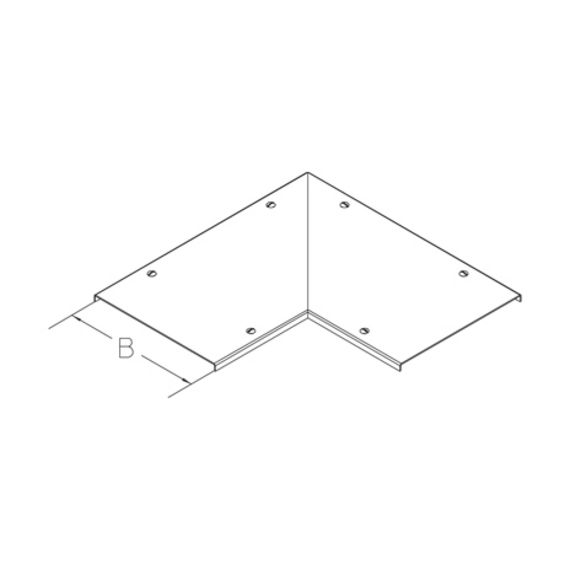

| width | t material thickness | PmaxMaximum load | weight | ||
|---|---|---|---|---|---|
| BKBGDR 10S | 100 mm | 2.00 mm | 5 kN | 1.27 kg | |
| BKBGDR 15S | 150 mm | 2.00 mm | 5 kN | 1.86 kg | |
| BKBGDR 20S | 200 mm | 2.00 mm | 5 kN | 2.53 kg | |
| BKBGDR 30S | 300 mm | 2.00 mm | 5 kN | 4.10 kg | |
| BKBGDR 40S | 400 mm | 2.00 mm | 5 kN | 5.99 kg | |
| BKBGDR 50S | 500 mm | 2.00 mm | 5 kN | 8.19 kg | |
| BKBGDR 60S | 600 mm | 2.00 mm | 5 kN | 10.70 kg |
