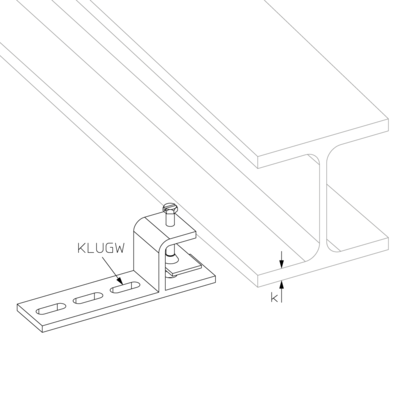

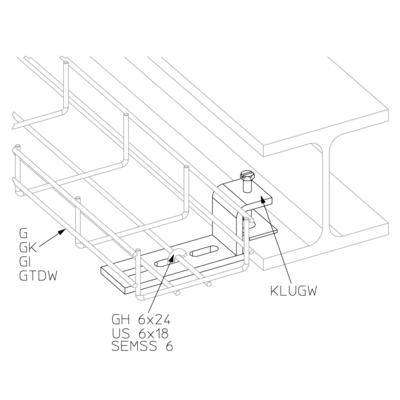

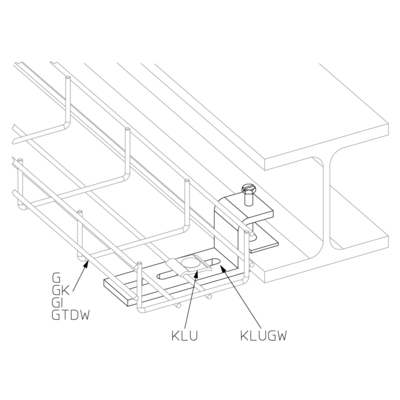

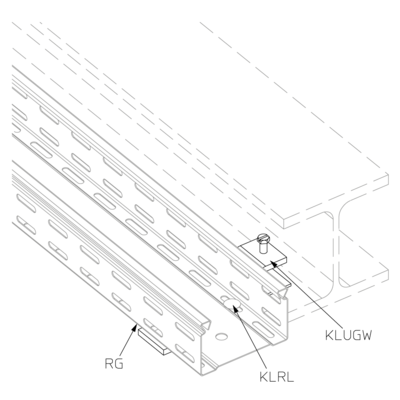

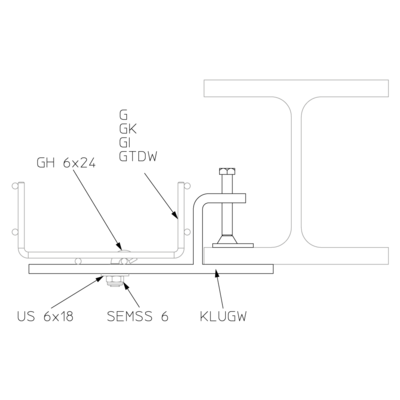

The welded clamp fastener KLUGW is used to fasten mesh cable trays and cable trays to horizontal steel beams. The maximum nominal load is between 0.4 and 1.1 kN and may need to be treated or reduced to increase the coefficient of friction, depending on the surface condition and pairing. The tightening torque to be used is 10 Nm. The clamping range extends from 3 - 31 mm. We provide components in various materials and surface finishes to ensure that various corrosion protection requirements for different areas of application are met.
