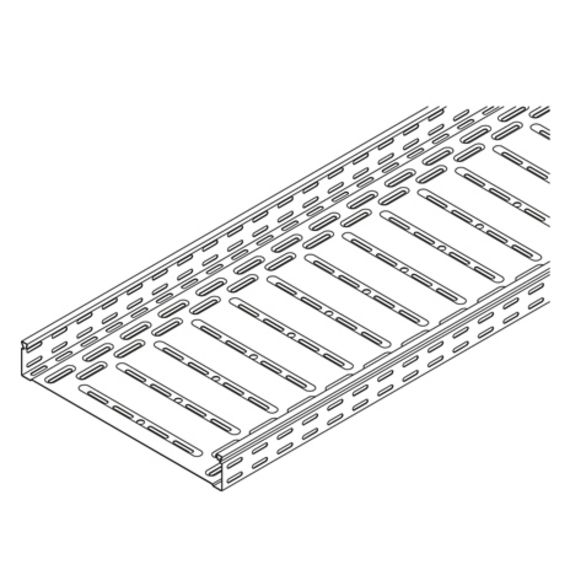

RGS 60 cable tray, perforated, heavy, height = 60 mm

Downloads

cable tray, heavy-duty, perforated head shape suitable for positive locking covers with longitudinal and lateral reinforcing rims reducing bottom deflection Electrical conductivity tested according to DIN EN 61537. certified according to DIN 4102-12

This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish. cable load as standard support construction max. 10 kg/m.

Do not walk upon!

UL classified

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	weight
RGS 60-10S	60 mm	100 mm	3000 mm	1.50 mm	57 cm²	0.09 kN/m	8.30 kg
RGS 60-20S	60 mm	200 mm	3000 mm	1.50 mm	117 cm²	0.18 kN/m	11.30 kg
RGS 60-30S	60 mm	300 mm	3000 mm	1.50 mm	177 cm²	0.27 kN/m	14.60 kg
RGS 60-40S	60 mm	400 mm	3000 mm	1.50 mm	237 cm²	0.36 kN/m	18.00 kg
RGS 60-50S	60 mm	500 mm	3000 mm	1.50 mm	297 cm²	0.45 kN/m	21.30 kg
RGS 60-60S	60 mm	600 mm	3000 mm	1.50 mm	357 cm²	0.54 kN/m	24.60 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	weight
RGS 60-10F	60 mm	100 mm	3000 mm	1.50 mm	57 cm²	0.09 kN/m	8.90 kg
RGS 60-20F	60 mm	200 mm	3000 mm	1.50 mm	117 cm²	0.18 kN/m	12.10 kg
RGS 60-30F	60 mm	300 mm	3000 mm	1.50 mm	177 cm²	0.27 kN/m	15.60 kg
RGS 60-40F	60 mm	400 mm	3000 mm	1.50 mm	237 cm²	0.36 kN/m	19.10 kg
RGS 60-50F	60 mm	500 mm	3000 mm	1.50 mm	297 cm²	0.54 kN/m	22.70 kg
RGS 60-60F	60 mm	600 mm	3000 mm	1.50 mm	357 cm²	0.52 kN/m	26.20 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	weight
RGS 60-10E	60 mm	100 mm	3000 mm	1.50 mm	57 cm²	0.09 kN/m	8.40 kg
RGS 60-20E	60 mm	200 mm	3000 mm	1.50 mm	117 cm²	0.18 kN/m	11.40 kg
RGS 60-30E	60 mm	300 mm	3000 mm	1.50 mm	177 cm²	0.27 kN/m	14.70 kg
RGS 60-40E	60 mm	400 mm	3000 mm	1.50 mm	234 cm²	0.36 kN/m	18.10 kg
RGS 60-50E	60 mm	500 mm	3000 mm	1.50 mm	297 cm²	0.45 kN/m	21.40 kg
RGS 60-60E	60 mm	600 mm	3000 mm	1.50 mm	357 cm²	0.54 kN/m	24.70 kg
