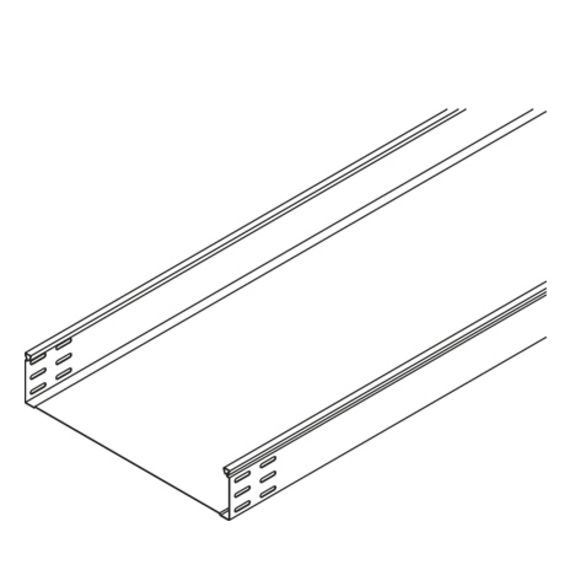

R 85 cable tray, unperforated, height = 85 mm

cable tray not perforated, head shape suitable for positive locking covers, certified including electrical conductivity according to DIN EN 61537

Do not walk upon!

UL classified

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

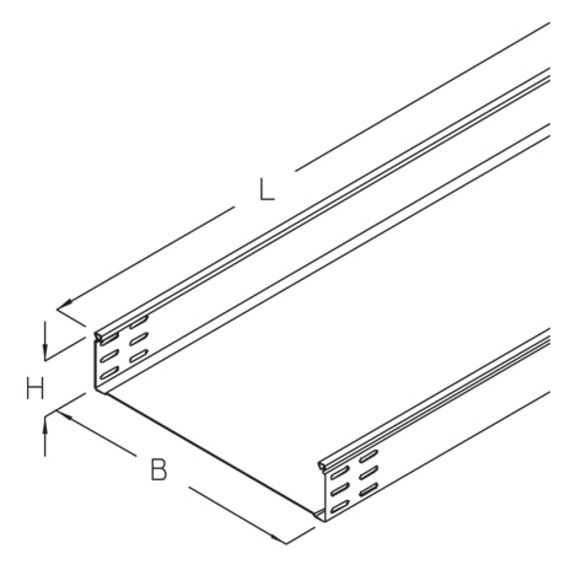

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	weight
R 85-10S	85 mm	100 mm	3000 mm	0.75 mm	82 cm²	0.12 kN/m	5.50 kg
R 85-20S	85 mm	200 mm	3000 mm	0.75 mm	167 cm²	0.25 kN/m	7.20 kg
R 85-30S	85 mm	300 mm	3000 mm	0.88 mm	252 cm²	0.38 kN/m	10.50 kg
R 85-40S	85 mm	400 mm	3000 mm	0.88 mm	337 cm²	0.51 kN/m	12.60 kg
R 85-50S	85 mm	500 mm	3000 mm	1.00 mm	422 cm²	0.63 kN/m	16.70 kg
R 85-60S	85 mm	600 mm	3000 mm	1.00 mm	507 cm²	0.76 kN/m	19.00 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	weight
R 85-10F	85 mm	100 mm	3000 mm	0.75 mm	82 cm²	0.12 kN/m	6.10 kg
R 85-20F	85 mm	200 mm	3000 mm	0.75 mm	167 cm²	0.25 kN/m	8.10 kg
R 85-30F	85 mm	300 mm	3000 mm	0.88 mm	252 cm²	0.38 kN/m	11.60 kg
R 85-40F	85 mm	400 mm	3000 mm	0.88 mm	337 cm²	0.51 kN/m	13.90 kg
R 85-50F	85 mm	500 mm	3000 mm	1.00 mm	422 cm²	0.63 kN/m	18.20 kg
R 85-60F	85 mm	600 mm	3000 mm	1.00 mm	507 cm²	0.76 kN/m	20.80 kg
