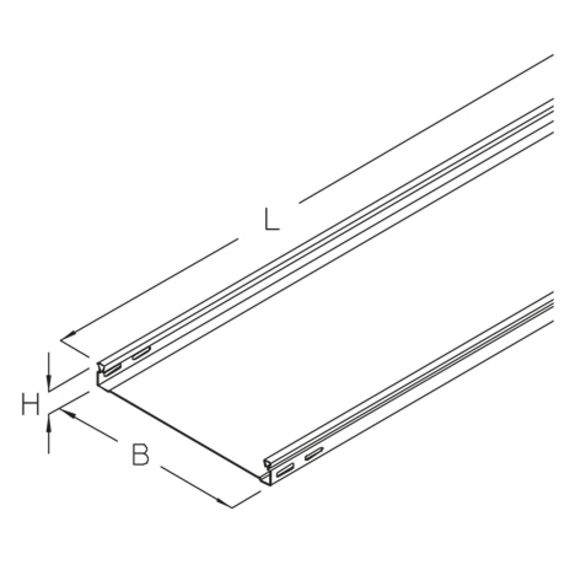

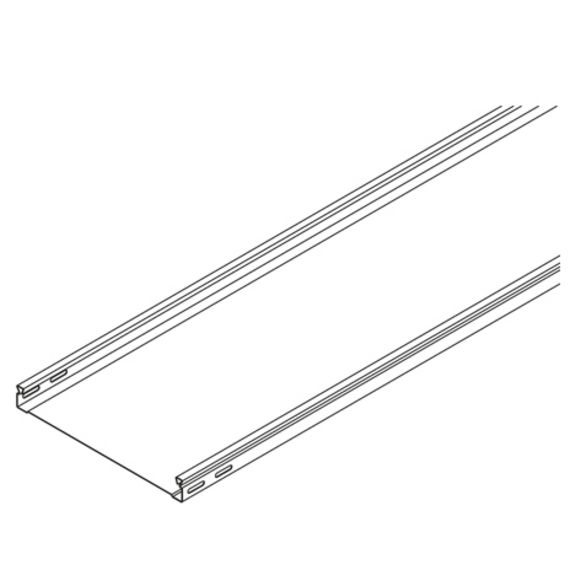

R 35 cable tray, unperforated, height = 35 mm

cable tray not perforated, head shape suitable for positive locking covers, certified including electrical conductivity according to DIN EN 61537

Do not walk upon!

UL classified

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	weight
R 35-05S	35 mm	50 mm	3000 mm	0.75 mm	15 cm²	0.02 kN/m	2.90 kg
R 35-10S	35 mm	100 mm	3000 mm	0.75 mm	32 cm²	0.05 kN/m	3.70 kg
R 35-20S	35 mm	200 mm	3000 mm	0.75 mm	67 cm²	0.10 kN/m	5.50 kg
R 35-30S	35 mm	300 mm	3000 mm	0.75 mm	102 cm²	0.15 kN/m	7.30 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	t material thickness	A cross section area	Q_SKdistributed load control cable	weight
R 35-05F	35 mm	50 mm	3000 mm	0.75 mm	15 cm²	0.02 kN/m	3.20 kg
R 35-10F	35 mm	100 mm	3000 mm	0.75 mm	32 cm²	0.05 kN/m	4.20 kg
R 35-20F	35 mm	200 mm	3000 mm	0.75 mm	67 cm²	0.10 kN/m	6.20 kg
R 35-30F	35 mm	300 mm	3000 mm	0.75 mm	102 cm²	0.15 kN/m	8.10 kg
