RVB 85 cable tray vertical bend, height = 85 mm

Downloads

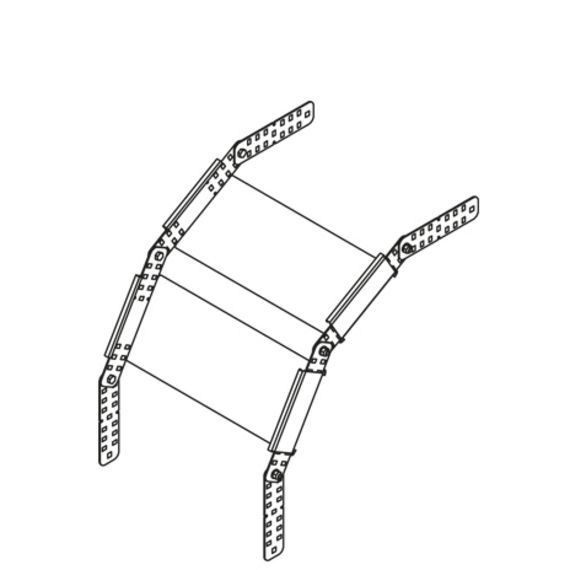

cable tray vertical bend for flexible vertical change of direction

UL classified

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

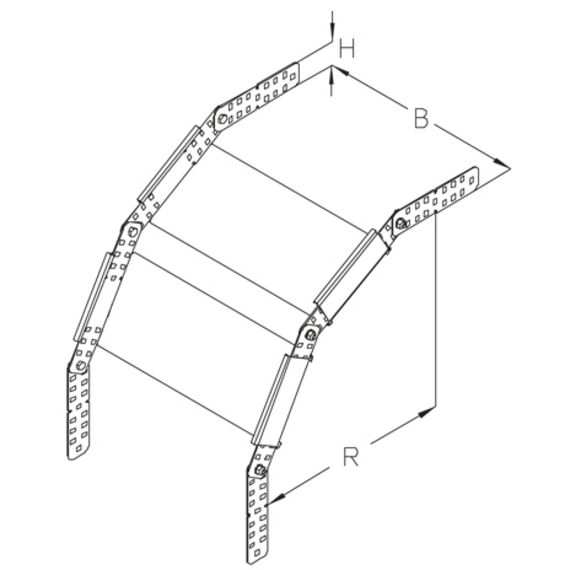

	height	width	radius	weight
RVB 85-10S	85 mm	100 mm	330 mm	2.8 kg
RVB 85-20S	85 mm	200 mm	330 mm	3.3 kg
RVB 85-30S	85 mm	300 mm	330 mm	3.8 kg
RVB 85-40S	85 mm	400 mm	330 mm	4.3 kg
RVB 85-50S	85 mm	500 mm	330 mm	4.8 kg
RVB 85-60S	85 mm	600 mm	330 mm	5.3 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	radius	weight
RVB 85-10F	85 mm	100 mm	330 mm	3 kg
RVB 85-20F	85 mm	200 mm	330 mm	3.5 kg
RVB 85-30F	85 mm	300 mm	330 mm	4.1 kg
RVB 85-40F	85 mm	400 mm	330 mm	4.6 kg
RVB 85-50F	85 mm	500 mm	330 mm	5.1 kg
RVB 85-60F	85 mm	600 mm	330 mm	5.7 kg
