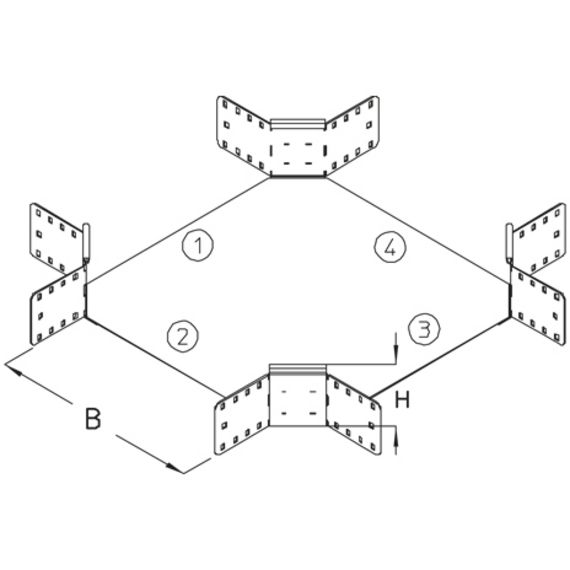

RK 85 cable tray crossover, height = 85 mm

Downloads

cable tray crossover for horizontal change of direction with integrated connectors

UL classified

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

	height	width	weight
RK 85-10S	85 mm	100 mm	1.5 kg
RK 85-20S	85 mm	200 mm	2 kg
RK 85-30S	85 mm	300 mm	2.5 kg
RK 85-40S	85 mm	400 mm	3.8 kg
RK 85-50S	85 mm	500 mm	4.9 kg
RK 85-60S	85 mm	600 mm	6.2 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	weight
RK 85-10F	85 mm	100 mm	1.6 kg
RK 85-20F	85 mm	200 mm	2.1 kg
RK 85-30F	85 mm	300 mm	2.7 kg
RK 85-40F	85 mm	400 mm	4.1 kg
RK 85-50F	85 mm	500 mm	5.2 kg
RK 85-60F	85 mm	600 mm	6.6 kg
