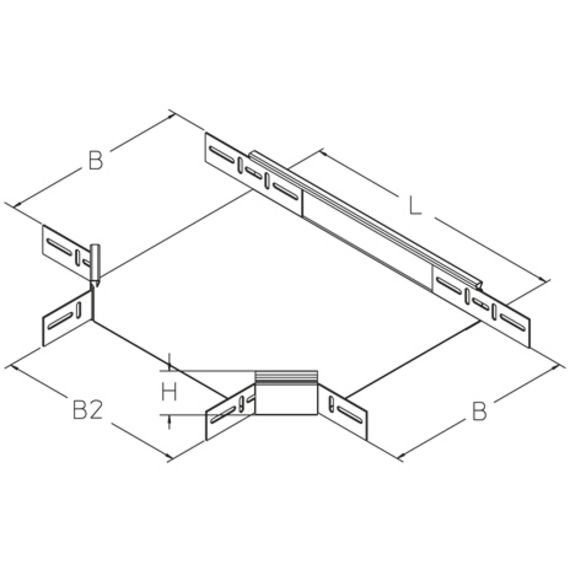

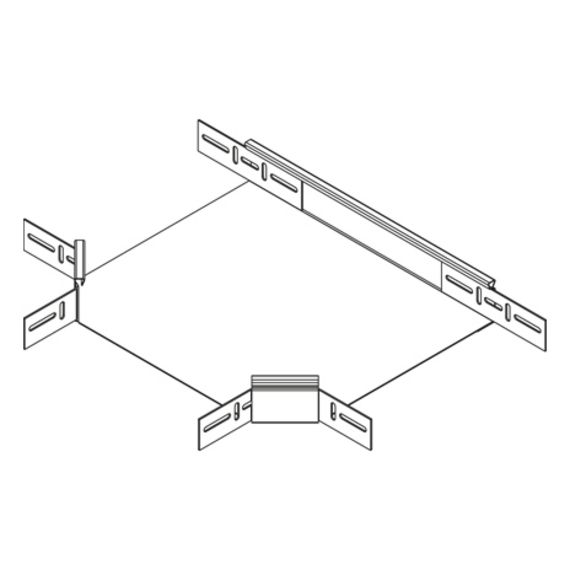

RIA 60 cable installation tray branch, height = 60 mm

cable tray branch in T-shape, integrated connectors

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

	height	width	width	length	weight
RIA 60-05S	60 mm	50 mm	50 mm	164 mm	0,91 kg
RIA 60-10S	60 mm	100 mm	100 mm	214 mm	1,18 kg
RIA 60-20S	60 mm	200 mm	200 mm	314 mm	1,72 kg
RIA 60-30S	60 mm	300 mm	300 mm	414 mm	2,45 kg
RIA 60-10-05S	60 mm	100 mm	50 mm	164 mm	0,99 kg
RIA 60-20-10S	60 mm	200 mm	100 mm	214 mm	1,39 kg
RIA 60-30-20S	60 mm	300 mm	200 mm	314 mm	2,03 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	width	length	weight
RIA 60-05F	60 mm	50 mm	50 mm	164 mm	0,98 kg
RIA 60-10F	60 mm	100 mm	100 mm	214 mm	1,26 kg
RIA 60-20F	60 mm	200 mm	200 mm	314 mm	1,84 kg
RIA 60-30F	60 mm	300 mm	300 mm	414 mm	2,63 kg
RIA 60-10-05F	60 mm	100 mm	50 mm	164 mm	1,07 kg
RIA 60-20-10F	60 mm	200 mm	100 mm	214 mm	1,44 kg
RIA 60-30-20F	60 mm	300 mm	200 mm	314 mm	2,12 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

	height	width	width	length	weight
RIA 60-05E	60 mm	50 mm	50 mm	164 mm	0,81 kg
RIA 60-10E	60 mm	100 mm	100 mm	214 mm	1,05 kg
RIA 60-20E	60 mm	200 mm	200 mm	314 mm	1,60 kg
RIA 60-30E	60 mm	300 mm	300 mm	414 mm	2,34 kg
RIA 60-10-05E	60 mm	100 mm	50 mm	164 mm	0,89 kg
RIA 60-20-10E	60 mm	200 mm	100 mm	214 mm	1,27 kg
RIA 60-30-20E	60 mm	300 mm	200 mm	314 mm	1,91 kg
