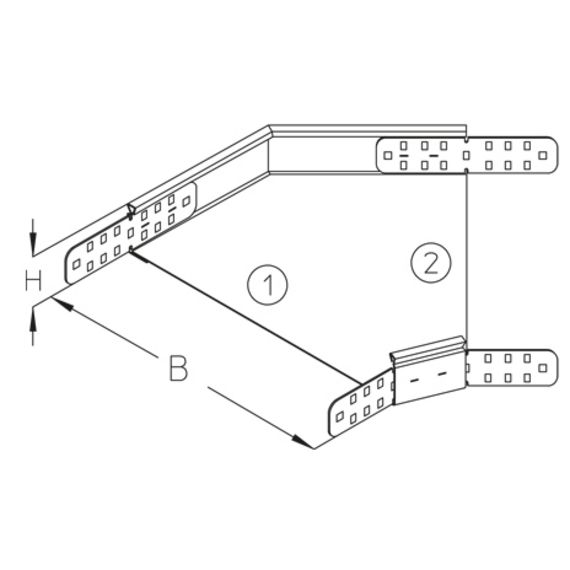

RB45 85 cable tray bend, height = 85 mm

Downloads

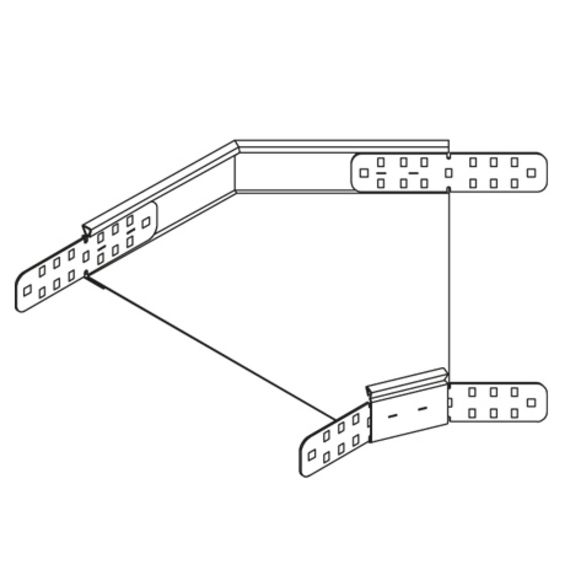

cable tray bend 45º, for horizontal change of direction, with integrated connectors

UL classified

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

	height	width	weight
RB45 85-10S	85 mm	100 mm	0.97 kg
RB45 85-20S	85 mm	200 mm	1.27 kg
RB45 85-30S	85 mm	300 mm	1.76 kg
RB45 85-40S	85 mm	400 mm	2.21 kg
RB45 85-50S	85 mm	500 mm	2.77 kg
RB45 85-60S	85 mm	600 mm	3.39 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	weight
RB45 85-10F	85 mm	100 mm	1.05 kg
RB45 85-20F	85 mm	200 mm	1.46 kg
RB45 85-30F	85 mm	300 mm	1.88 kg
RB45 85-40F	85 mm	400 mm	2.21 kg
RB45 85-50F	85 mm	500 mm	2.96 kg
RB45 85-60F	85 mm	600 mm	3.63 kg
