RB 60 cable tray bend, height = 60 mm

Downloads

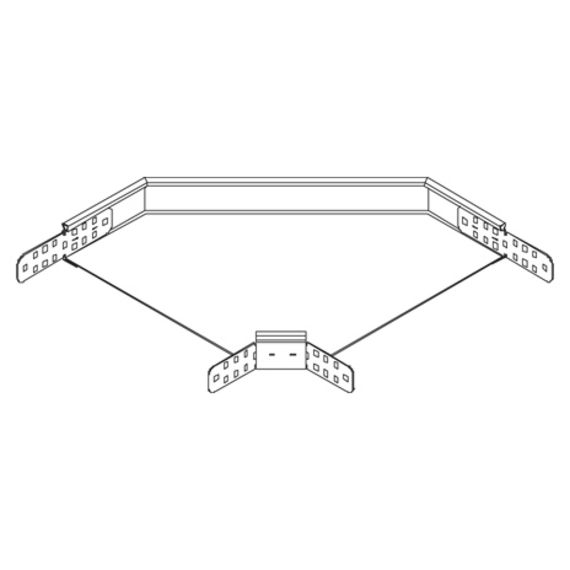

cable tray bend 90º for horizontal change of direction with integrated connectors

This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.

UL classified

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

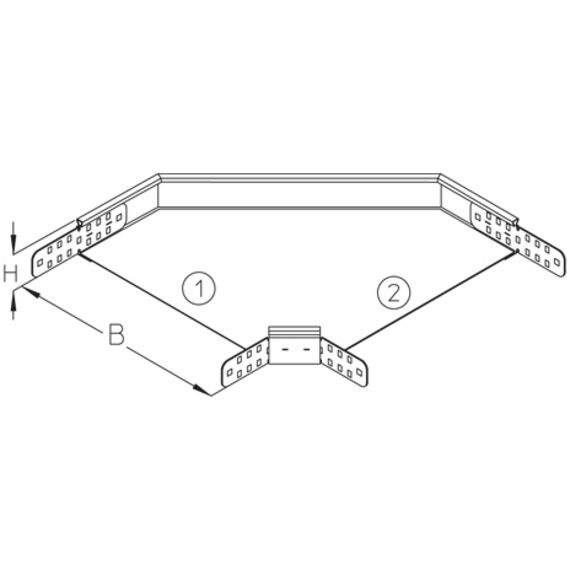

	height	width	weight
RB 60-10S	60 mm	100 mm	0.8 kg
RB 60-20S	60 mm	200 mm	1.1 kg
RB 60-30S	60 mm	300 mm	1.6 kg
RB 60-40S	60 mm	400 mm	2.2 kg
RB 60-50S	60 mm	500 mm	3.1 kg
RB 60-60S	60 mm	600 mm	4 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	weight
RB 60-10F	60 mm	100 mm	0.9 kg
RB 60-20F	60 mm	200 mm	1.2 kg
RB 60-30F	60 mm	300 mm	1.7 kg
RB 60-40F	60 mm	400 mm	2.4 kg
RB 60-50F	60 mm	500 mm	3.3 kg
RB 60-60F	60 mm	600 mm	4.3 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

	height	width	weight
RB 60-10E	60 mm	100 mm	0.7 kg
RB 60-20E	60 mm	200 mm	1 kg
RB 60-30E	60 mm	300 mm	1.5 kg
RB 60-40E	60 mm	400 mm	2.1 kg
RB 60-50E	60 mm	500 mm	2.9 kg
RB 60-60E	60 mm	600 mm	3.9 kg
