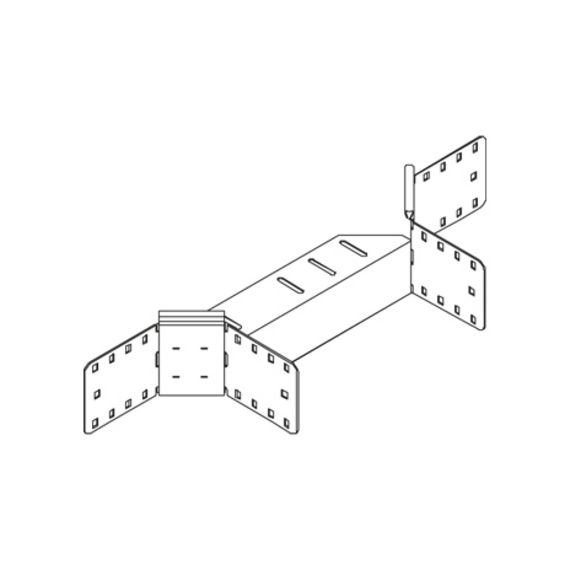

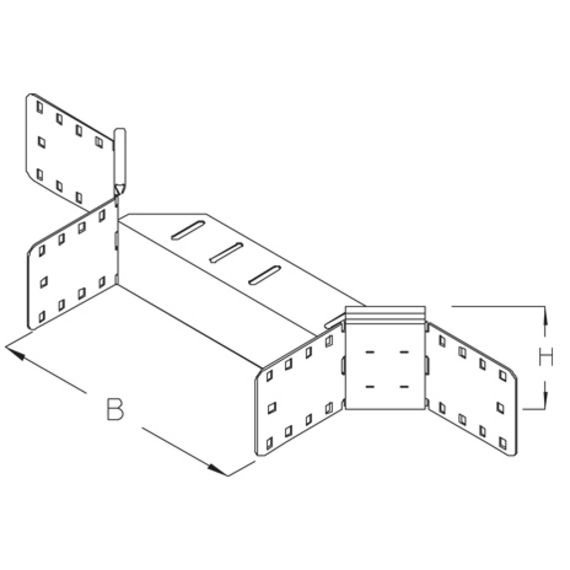

RAA 85 cable tray attachment branch, height = 85 mm

Downloads

UL classified

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

	height	width	weight
RAA 85-10S	85 mm	100 mm	1 kg
RAA 85-20S	85 mm	200 mm	1.2 kg
RAA 85-30S	85 mm	300 mm	1.3 kg
RAA 85-40S	85 mm	400 mm	1.4 kg
RAA 85-50S	85 mm	500 mm	1.6 kg
RAA 85-60S	85 mm	600 mm	1.7 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	weight
RAA 85-10F	85 mm	100 mm	1.1 kg
RAA 85-20F	85 mm	200 mm	1.2 kg
RAA 85-30F	85 mm	300 mm	1.4 kg
RAA 85-40F	85 mm	400 mm	1.5 kg
RAA 85-50F	85 mm	500 mm	1.7 kg
RAA 85-60F	85 mm	600 mm	1.8 kg
