RA 85 cable tray branch, height = 85 mm

Downloads

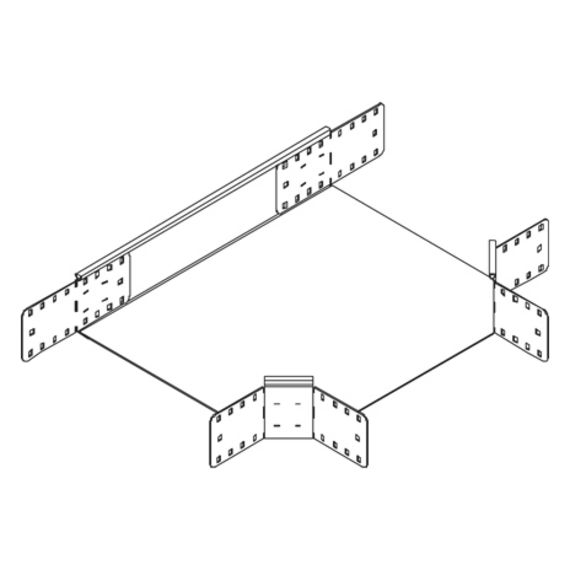

cable tray branch in T-shape, integrated connectors

UL classified

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

	height	width	length	weight
RA 85-10S	85 mm	100 mm	214 mm	1.7 kg
RA 85-20S	85 mm	200 mm	314 mm	2.3 kg
RA 85-30S	85 mm	300 mm	414 mm	3.1 kg
RA 85-40S	85 mm	400 mm	514 mm	4.1 kg
RA 85-50S	85 mm	500 mm	614 mm	5.8 kg
RA 85-60S	85 mm	600 mm	714 mm	7.4 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	weight
RA 85-10F	85 mm	100 mm	214 mm	1.9 kg
RA 85-20F	85 mm	200 mm	314 mm	2.5 kg
RA 85-30F	85 mm	300 mm	414 mm	3.3 kg
RA 85-40F	85 mm	400 mm	514 mm	4.4 kg
RA 85-50F	85 mm	500 mm	614 mm	6.2 kg
RA 85-60F	85 mm	600 mm	714 mm	7.9 kg
