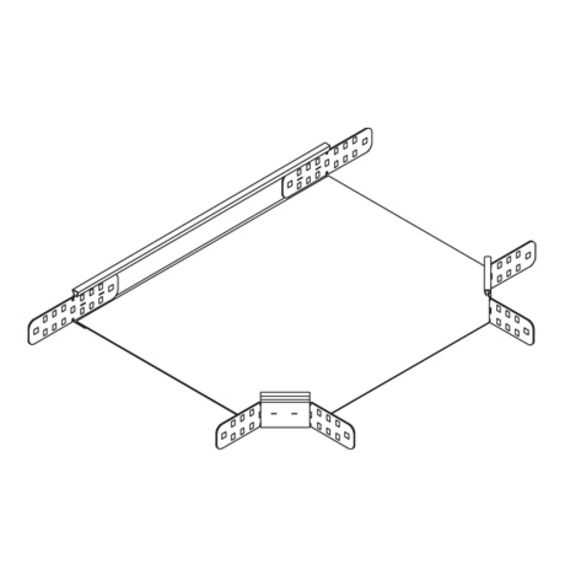

RA 60 cable tray branch, height = 60 mm

cable tray branch in T-shape, integrated connectors

This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.

UL classified

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

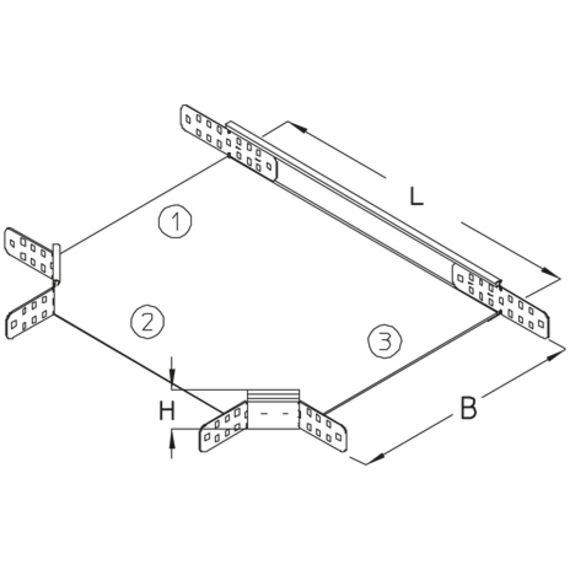

	height	width	length	weight
RA 60-10S	60 mm	100 mm	214 mm	1.3 kg
RA 60-20S	60 mm	200 mm	314 mm	1.8 kg
RA 60-30S	60 mm	300 mm	414 mm	2.6 kg
RA 60-40S	60 mm	400 mm	514 mm	3.5 kg
RA 60-50S	60 mm	500 mm	614 mm	5.3 kg
RA 60-60S	60 mm	600 mm	714 mm	6.9 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	height	width	length	weight
RA 60-10F	60 mm	100 mm	214 mm	1.4 kg
RA 60-20F	60 mm	200 mm	314 mm	1.9 kg
RA 60-30F	60 mm	300 mm	414 mm	2.8 kg
RA 60-40F	60 mm	400 mm	514 mm	3.7 kg
RA 60-50F	60 mm	500 mm	614 mm	5.7 kg
RA 60-60F	60 mm	600 mm	714 mm	7.4 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

	height	width	length	weight
RA 60-10E	60 mm	100 mm	214 mm	1.1 kg
RA 60-20E	60 mm	200 mm	314 mm	1.6 kg
RA 60-30E	60 mm	300 mm	414 mm	2.5 kg
RA 60-40E	60 mm	400 mm	514 mm	3.4 kg
RA 60-50E	60 mm	500 mm	614 mm	5.2 kg
RA 60-60E	60 mm	600 mm	714 mm	6.8 kg
