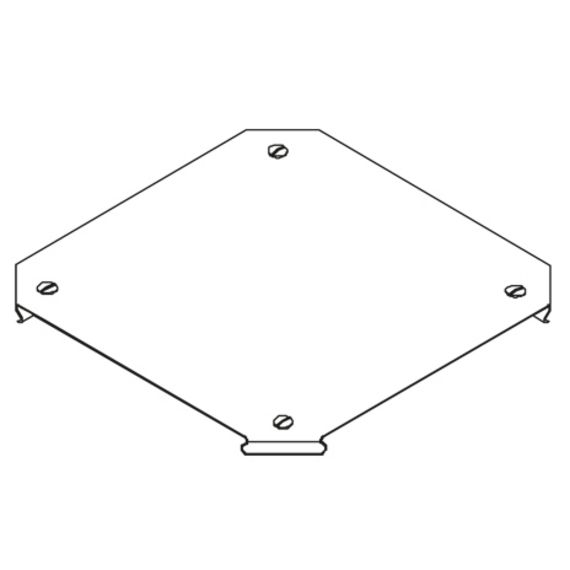

RKDR cable tray crossing cover with turning bolts

Downloads

cable tray crossing cover, positive locking, with additional turning bolts

This article is available made in material No. 1.4571/1.4404 (V4A) stainless steel finish.

Continously hot galvanized (Sendzimir process) (DIN EN 10346)

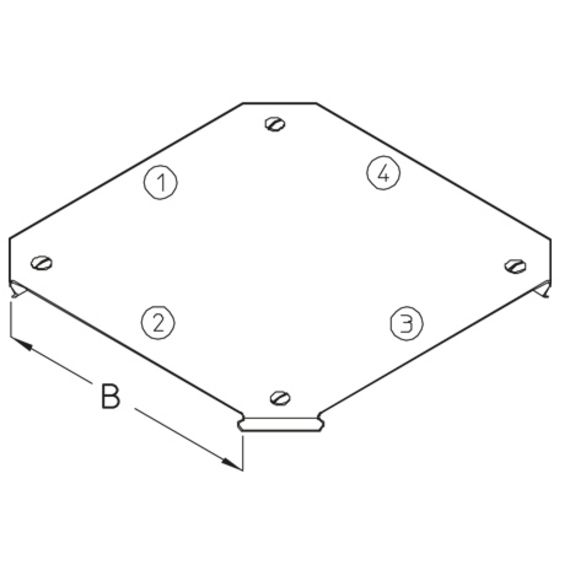

	width	weight
RKDR 10S	100 mm	0.3 kg
RKDR 20S	200 mm	0.7 kg
RKDR 30S	300 mm	1.4 kg
RKDR 40S	400 mm	2.2 kg
RKDR 50S	500 mm	3.8 kg
RKDR 60S	600 mm	5.1 kg

Hot-dip galvanized, according to BS 729 (DIN EN ISO 1461)

	width	weight
RKDR 10F	100 mm	0.4 kg
RKDR 20F	200 mm	0.7 kg
RKDR 30F	300 mm	1.6 kg
RKDR 40F	400 mm	2.4 kg
RKDR 50F	500 mm	4.2 kg
RKDR 60F	600 mm	5.5 kg

Stainless steel, according to ASTM 304 / BS 304 S 3

	width	weight
RKDR 10E	100 mm	0.4 kg
RKDR 20E	200 mm	0.7 kg
RKDR 30E	300 mm	1.4 kg
RKDR 40E	400 mm	2.2 kg
RKDR 50E	500 mm	3.7 kg
RKDR 60E	600 mm	5 kg
